Download

Current master version on github

https://github.com/paulrho/ijk64/raw/master/C64.jar

Run

From Command Prompt or Terminal...

java -jar C64.jar -c -2

(Centered and double pixel size)

Use

Load a directory listing from the (cloud) web... (currently shared)

HELP
LOAD"%"
LIST
LOAD"%GENES2016"
RUN

Right click on screen for a context menu

Tips

For CTRL key use Tab
For C=   key use Left-Ctrl
For RUN/STOP key use Shift-Esc

Run with proxy:
java -Dhttp.proxyHost=111.222.111.123 -Dhttp.proxyPort=8080 -jar C64.jar

Run faster (initially runs slower, then runs nearly twice as fast)
java -server -jar C64.jar

Details

C64 paradigm:

Most C64 basic commands / functions
Some essential pokes

Transcending the C64 paradigm:

Screen

Allows for larger (and smoothed) characters, 1x1, 2x2, 3x3, 1x2 point sizes
Allows for larger (x,y) screen characters (e.g. 80 x 80 chars)
Screen buffers as writes
Fine tuning of background etc

Mouse / Keys

Click move cursor to point
PgUp/PgDown Scrollwheel look back/forward in buffer
Righ click menu
Auto-insert switched on by default (switchable)
Copy whole screen
Paste into screen
List
Syntax highlighting (switchable)
more than 2 lines allowed

Language

Extra graphics mode and commands (Hand Basic)
Meta commands to control screen size etc
Play sound (wav)

Machine

Much more RAM
Faster

Allows loading from web
Use ":" prefix shorthand to alias "http://www.futex.com.au/basic"

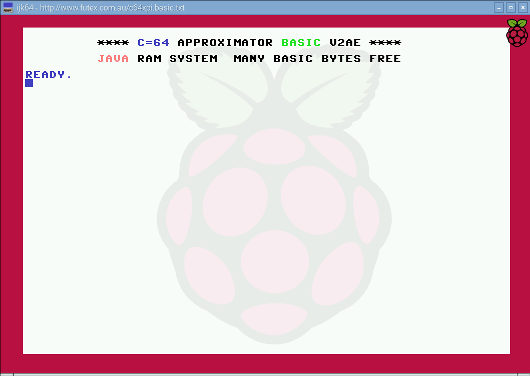

Runs in java, runs on a Raspberry Pi

New fixes & features

with 3.4.0.b1897

fixed: ascii-chr (internal character coding) and other ascii tweaks
fixed: allow CTRL (TAB) keys A-Z (on top of existing 0->9), and reverse lookups
fixed: ti$ to display hhmmss & special tisec to be seconds from epoch
minor : loading message change, allow load"*" = load"%"
fixed (allowed) windows format basic/txt files (CR/LF)
fixed (allowed) let def prefixes
fixed ; , spc and tab in print statements
changed cloud directory
merged for and gosub stack = one stack (keeps c= behavior)
fix: black text, error cr, outofmem for stack
fix data string (trim leading spaces)
fix chr$(160) block - not reversed
implement on goto/gosub
syntax highlight improvements
playsound and alert fixes
allow run# goto# from direct mode
fixed character mapping (pc<->c64)
keep cursor colour after listing
added NOT keyword, error when not used correctly e.g. A NOT B
changed precedence of -5^2 to match C64 (^ highest then -ve)
changed precedence of xor
experimental save/load from "cloud" - prefix filename with "%", e.g.
cloud directory listing
```
load"%"
```
load a file from cloud
```
load"%filename"
```

wiki

Basic programs

current "$" listing

(from within jar)

REM PROGRAM = $.BASIC
17   "GENESDT"             :PRG
20   "G20"                 :PRG
21   "G2010B"              :PRG
10   "TRYALL"              :PRG
2 MANY BLOCKS FREE

current "$$" listing

(from web)

REM PROGRAM = HTTP://WWW.FUTEX.COM.AU/BASIC/$.TXT
28   ":GENES2016"          :PRG
20   ":PEOPLE10-1"         :PRG
36   ":STANDEW-39"         :PRG
1    "--------------------":PRG
1    ":PI"                 :PRG
10   ":GRETAGAME2"         :PRG
10   ":GRETAMULT2"         :PRG
10   ":MINEPLOT"           :PRG
10   ":BTEST5F"            :PRG
10   ":PISTONS"            :PRG
1    "--------------------":PRG
1    ":TESTS/$"            :DIR
1    "====================":PRG
2    "PIBACK4.PNG"         :NOLOAD
2    "PIBACK4B.PNG"        :NOLOAD
2    "C64.JAR" V3.4.0.B1524:NOLOAD
2 MANY BLOCKS FREE

current "%" listing

(from cloud)

LOAD"%"

READY.
LIST

REM PROGRAM = HTTP://WWW.FUTEX.COM.AU/BASIC/DIR.PHP
%AN40F11        11318 2016-03-22 00.47
%AUTEST1000       881 2016-03-29 21.48
%BTEST5F         3769 2016-03-22 07.37
%FLASHWORD4      7672 2016-03-22 07.22
%GENES2016      28277 2016-03-27 21.06
%GRETAGAME2      4015 2016-03-22 07.38
%GRETAMULT2      3437 2016-03-22 07.38
%GTESTCASE2       382 2016-03-22 07.00
%MINEPLOT        5291 2016-03-22 07.37
%MP2             6592 2016-03-22 00.56
%PATIENCE        9277 2016-03-28 19.36
%PEOPLE10-1     20656 2016-03-22 07.02
%PI               345 2016-03-25 23.15
%PIB              355 2016-03-26 00.53
%PISTONS         2334 2016-03-22 07.37
%PRGBUGS          113 2016-03-22 09.06
%README           609 2016-03-22 07.41
%REVERSI         7531 2016-03-31 21.33
%SATEL250       24524 2016-03-22 10.15
%STANDREW-39    36574 2016-03-22 07.37
%TAROT          24479 2016-04-02 16.07
%TIME1            268 2016-03-22 15.52
%TRYALL          2045 2016-03-22 00.35

READY.

Syntax

Accepted commands

area	ver	command	description
flow	2.0	`FOR..TO..STEP`
flow	2.0	`NEXT`
flow	2.0	`IF..THEN/GOTO`
flow	2.0	`GOTO/GO TO`
flow	2.0	`GOSUB`
flow	2.0	`ON..GOTO/GOSUB`
flow	2.0	`RETURN`
flow	2.0	`END`
io	2.0	`GET#5`
io	2.0	`PRINT#`
io	2.0	`PRINT`
io	2.0	`OPEN`
io	2.0	`INPUT/#1`
io	2.0	`INPUT#`
io	2.0	`CLOSE`
var	2.0	`LET`
var	2.0	`DEF FN`
var	2.0	`DIM`
var	2.0	`DATA`
var	2.0	`READ`
var	2.0	`RESTORE`
var	2.0	`pi`
var	2.0	`TI`	interger time in 60ths of second
var	2.0	`TI$`	HHMMSS
var	2.0	`ST`	File I/O status
sys	2.0	`POKE`
sys	2.0	`PEEK`
sys	2.0	`SYS`
control	2.0	`LIST`	list current program
control	2.0	`RUN`	run current program
control	2.0	`LOAD`
control	2.0	`SAVE`
control	2.0	`VERIFY`	N/A
control	2.0	`CLR`
control	2.0	`NEW`
control	2.0	`CONT`
control	2.0	`STOP`
control *	7.0	`SLOW`	N/A
control *	7.0	`FAST`	N/A
control	2.0	`WAIT`	Not defined / Not implemented (yet)
ext:meta	ijk	`META-VERBOSE`
ext:meta	ijk	`META-SCALE`
ext:meta	ijk	`META-SCALEY`
ext:meta	ijk	`META-ROWS`
ext:meta	ijk	`META-COLS`
ext:meta	ijk	`META-BGTRANS`
ext:meta	ijk	`META-CHARSET`
ext:meta	ijk	`META-DUMPSTATE`
ext:meta	ijk	`META-TIMING`
ext:meta	ijk	`EXIT`
ext:expand	ijk	`HELP`
ext:expand	ijk	`LABEL`
ext:graphics	hb	`SCREEN`
ext:graphics	hb	`BEGINFRAME`
ext:graphics	hb	`ENDFRAME`
ext:graphics	hb	`ANTIALIAS`
ext:graphics	hb	`CLS`
ext:graphics	hb	`LSET`
ext:graphics	hb	`FSET`
ext:graphics	hb	`PSET`
ext:graphics	hb	`ALERT`
ext:graphics	hb	`RECT`
ext:graphics	hb	`LINE`
ext:graphics	hb	`CIRCLE`
ext:graphics	hb	`GPRINT`
ext:graphics	hb	`FILES`
ext:graphics	hb	`IMAGELOAD`
ext:graphics	hb	`DRAWIMAGE`
ext:graphics	hb	`DESTROYIMAGE`
ext:graphics	hb	`SLEEP`	* also works without starting graphics mode
func/trig	2.0	`SIN(`
exp:func		`ASIN(`
func/trig	2.0	`COS(`
exp:func		`ACOS(`
func/trig	2.0	`TAN(`
func/trig	2.0	`ATN(`
exp:func		`SILLY(`	test func
func	2.0	`SGN(`
func	2.0	`INT(`
func	2.0	`ABS(`
func	2.0	`RND(`
func	2.0	`EXP(`
func	2.0	`LOG(`
func	2.0	`SQRT(/SQR(`
func	2.0	`POS(`
func	2.0	`PEEK(`
func	2.0	`FRE(`	0 = actual free, 1 = free (of total) 2,3,4
func/str	2.0	`VAL(`
func/str	2.0	`TAB(`
func/str	2.0	`SPC(`
func/str	2.0	`LEN(`
func/str	2.0	`ASC(`
func/str	2.0	`CHR$(`
func/str	2.0	`STR$(`
func/str	2.0	`LEFT$(`
func/str	2.0	`RIGHT$(`
exp:func		`PCASC(`
exp:func		`PCCHR$(`
exp:func		`PETCONVERT(`
exp:func		`PETUNCONVERT(`
exp:func	7.0	`INSTR(`
exp:func		`metaRDS(`	used internally
exp:func		`EVAL$(`	evaluates a run time string
exp:op		`,`	internal pri:1
exp:op		`===`	internal pri:2
logic	2.0	`OR`	pri:3
exp:func/logic		`XOR`	pri:4
logic	2.0	`AND`	pri:5
logic	2.0	`NOT`	pri:6 right->left
op	2.0	`>`	pri:7
op	2.0	`<`	pri:7
op	2.0	`≤`	pri:7
op	2.0	`≥`	pri:7
op	2.0	`!=`	pri:7
op	2.0	`<>`	pri:7
op	2.0	`=`	pri:7
op	2.0	`==`	pri:7
op	2.0	`+`	pri:8
op	2.0	`-`	pri:8
op		`%`	mod, Not implemented (yet)
op	2.0	`*`	pri:9
op	2.0	`/`	pri:9
op	2.0	`-(ve)`	pri:10 right->left *newly updated precedence
op	2.0	`^`	pri:11
op	2.0	`(`	pri:12
op	2.0	`)`	pri:12

Code

Java, on github: https://github.com/paulrho/ijk64.

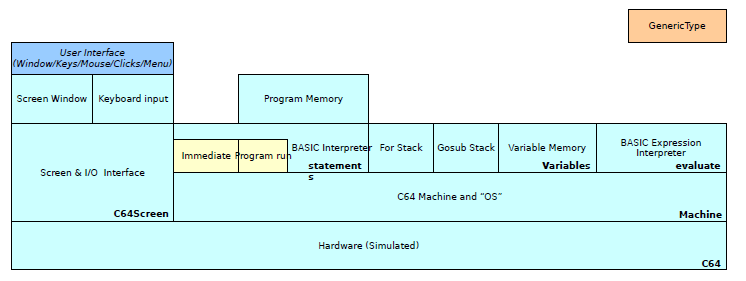

Code Architecture

To Do

* 160 isn't a reversed block (I think) =FIXED!- changed test case
* string after data token space = FIXED
* doesn't allow input"string";i$ - FIXED
* things ending in SPC() (or TAB()?)-FIXED
  is same as ;-FIXED
* ; then space then : or EOL-FIXED
* poke1024,160 : wont show unless space over it! (default color black!) -> see clear screen set colour
. let - done

-----
* when clear screen - should set colour to cursor colour (?)
* doesn't allow input c : (treats as string)
* exact 40 chars with ; - note sure this is an issue
* DATA/READ cant read data unless run already (should force a caching somehow)
* space between func name and ( (should be allowed but isnt')

** Feature completions:
*implement:
. go
. usr
. cmd

** Feature Expansions:
* required feature:  copy paste part of screen and full log
* required 128 expansions:
  * print using
  * else
  * begin
  * bend

* implement:
. Implement:
. Graphics: GRAPHIC, SCNCLR, COLOR, BOX, CIRCLE, DRAW, PAINT, LOCATE, SCALE; CHAR
. RCLR(), RDOT(), RGR()
. Sprites & Shapes: SSHAPE, GSHAPE, SPRSAV, SPRDEF, SPRITE, SPRCOL, MOVSPR, RSPCOL(), RSPPOS(), RSPR()
. COLINT, RBUMP()
. Inputs: KEY, RJOY(), RPOT(), RPEN()
. Music & Sound: TEMPO, TUNE, FILTER

Raspberry Pi

Unix, linux from the beginning:
Terminal (is the unix shell)
default userid is "pi"
# and everything after in shell is a comment
root is the master user with all permissions
sudo su   #will start shell as root user
sudo ..a command.. # will run that command only as root

Updating the software

sudo apt-get update       #updates the software list
sudo apt-get upgrade      #updates the actual software
sudo apt-get dist-upgrade #updates major versions
sudo rpi-update           #updates the firmware

To get this configuration LOAD"%PI":RUN

References

Genes

A whole discussion unto itself.....

For another page.
